PCB Mount SSR

• Compatible to TTL/CMOS logic
• Zero Voltage / Random turn on
• Opto Isolation 2500VA
• Opto isolation 2500vrms
• Input LED Indication (Green)
• Output reversed LED Indication (Red)
• DC to AC type S.S.R output Triac
• DC side MOSFET output for 300micro second ON/OFF Period

AC Output SSR

OUTPUT CURRENT	OUTPUT VOLTAGE (AC)	TYPE NO	ITSM (A)	IRM (mA)	VTM (V)	dv/dt (V/us)	RTHJC (oC/W)	PACKAGE

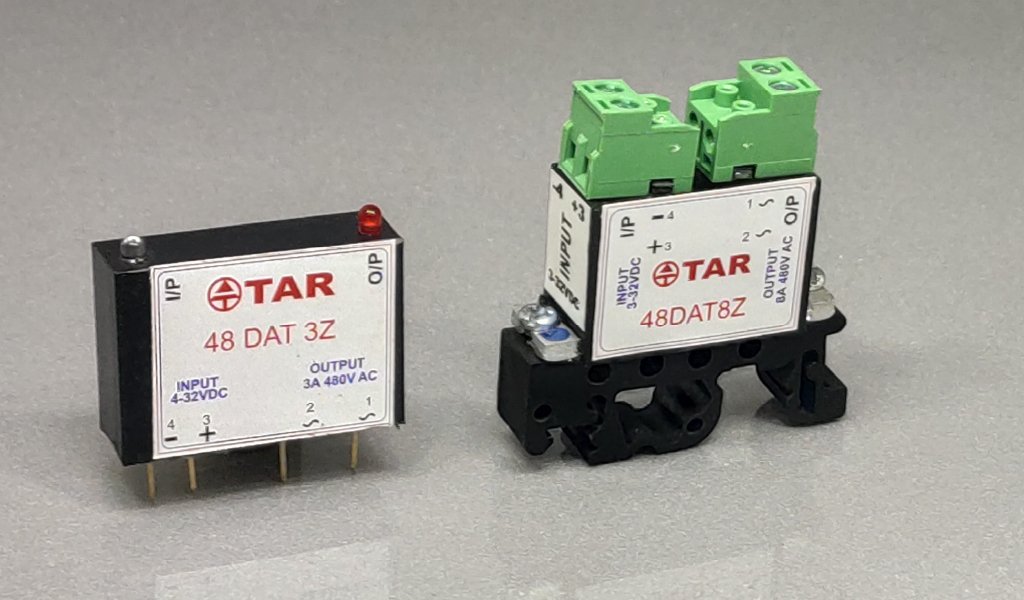

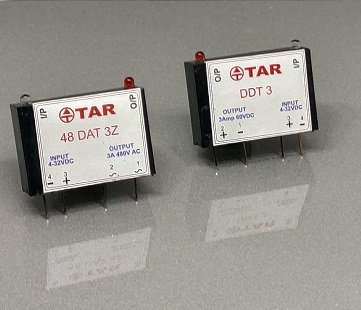

3 Amp	Max 480V	48 DAT 3Z	40	5	1.6@ 5A	200	1.2	PCB
3 Amp	Max 240V	24 DAT 3Z	40	5	1.6@ 5A	200	1.2	PCB

DC Output SSR

OUTPUT CURRENT	OUTPUT VOLTAGE (DC)	TYPE NO	PACKAGE
3 Amp	60VDC	DDT 3Z	PCB
3 Amp	100VDC	100 DDT 3Z	PCB
