Triac Output (10-50Amp)
Single Phase SSR
| CURRENT | VOLTAGE | TYPE NO | ITSM (A) | IRM (mA) | VTM (V) | dv/dt (V/us) | RTHJC (oC/W) | PACKAGE |
| 3 Amp | Max 480V | 24 DAT 3Z | 40 | 5 | 1.6@ 5A | 200 | 1.2 | PCB |

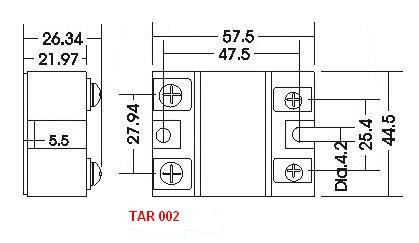

| 10 Amp | Max 800V | 48 DAT 10Z | 140 | 5 | 1.6 @ 10A | 200 | 0.8 | TAR 002 |
| 16 Amp | Max 800V | 48 DAT 16Z | 180 | 5 | 1.6 @ 25A | 200 | 0.7 | |
| 25 Amp | Max 800V | 48 DAT 25Z | 230 | 5 | 2 @ 35A | 200 | 0.6 | |
| 40 Amp | Max 800V | 48 DAT 40Z | 400 | 8 | 2 @ 60A | 200 | 0.5 |
Three Phase SSR
Current | Voltage (V) | Type No | ITSM (A) | I2t (A2s) | IRM (mA) | VTM (V) | dv/dt (V/us) |
25 A | 330 | T 33 DAT 25Z | 230 | 285 | 5 | 2 @ 35A | 100 |
480 | T 48 DAT 25Z | ||||||
40 A | 330 | T 33 DAT 40Z | 400 | 800 | 8 | 2 @ 60A | 100 |
480 | T 48 DAT 40Z |
| Output characteristics | Switching | DC I/P zero crossing | DC I/P non zero crossing | AC I/P zero crossing |
| Nominal Line voltage | 240 | 240 | 240 | |
| Min O/P Voltage (V) | 24 | 24 | 24 | |
| Max transient overvoltage VAC peak | 800 | 800 | 800 | |
| Max operating temperature | 125 oC | |||
| Input characteristics | Min I/P Voltage | 3 VDC | 3.5 VDC | 90 VAC |
| Max I/P Voltage (V) | 32 VDC | 270 VAC | ||
| Max turn-on time (ms) | 8.3 | 0.02 | 8.3 | |
| Max turn-off time (ms) | 8.3 | |||
| Min turn-off current mA | 0.25 | 2.5 mA AC | ||
| Min turn-off voltage | 1 VDC | 10 VAC | ||
| Max electrical isolation | 4000 V | |||
| Max Reverse Voltage | – 32 V | NA | ||
